1-2-1:Large wing outside platform (including wing tip platform)

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:
Packaging Details:
Delivery Time:
Payment Terms:
Supply Ability:
Detailed Product Description

1: 窄体机坞/Narrow-body Aircraft Maintenance Dock



Narrow-body Aircraft Maintenance Dock is used for maintenance of B737 series and A320 series, which meets the requirements of

C/D inspection and spray painting of aircraft. It include Nose Dock, Wing Dock, Fuselage Dock,Tail Dock.


1-2:大翼坞/ Wing Dock(Product introduction)

Wing Dock consist of its outboard platform ,inner platform,wingtip platform,the inner engine platform and landing gear platform,which

meets the C/D Check and spray painting of aircraft requirement of wings.

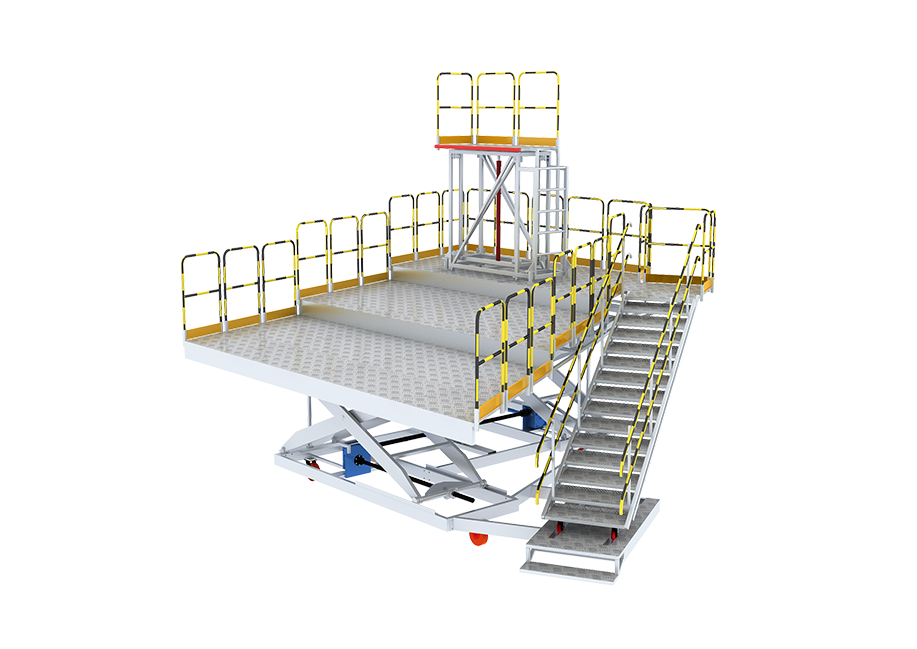

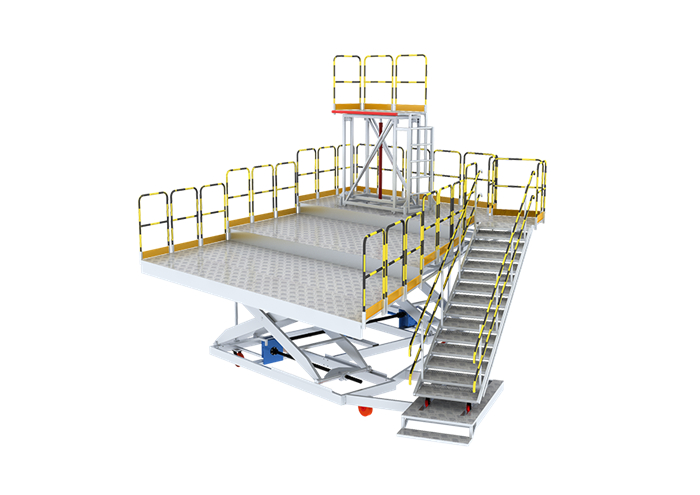

1-2-1:大翼外侧平台(含翼尖平台)/Large wing outside platform (including wing tip platform)


It consists of a main working platform and a wingtip platform. The working area contains the outer side of the big wing and the winglet.
